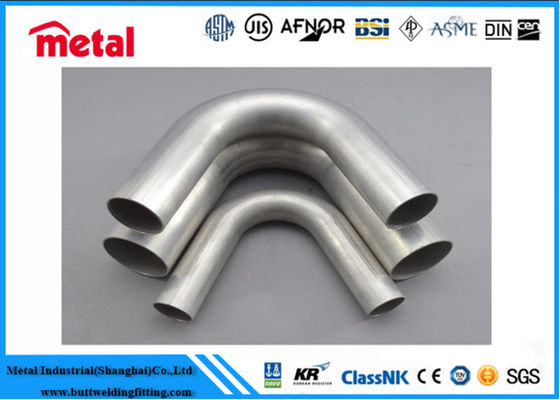

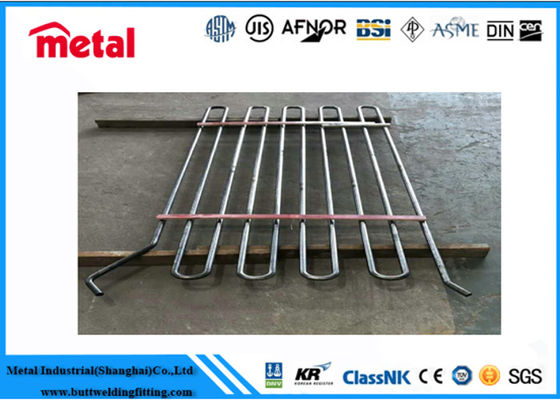

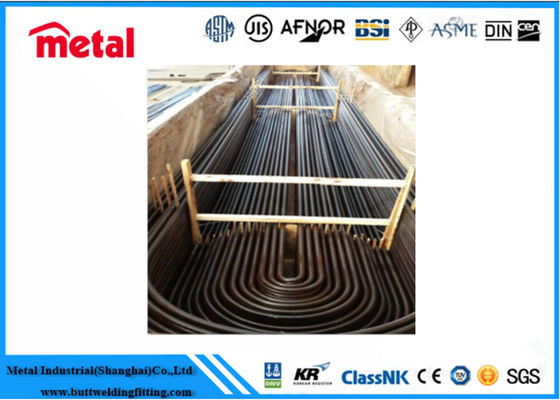

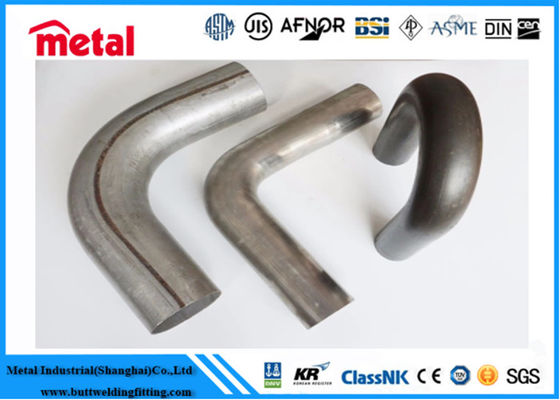

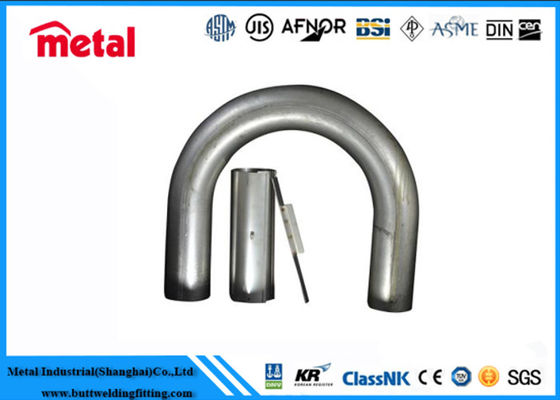

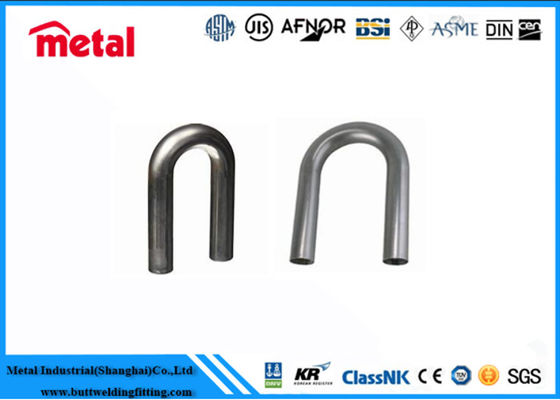

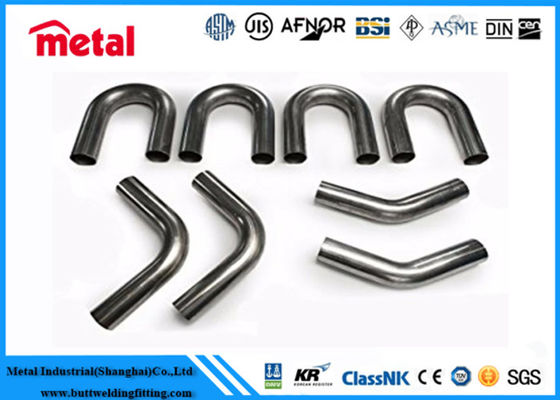

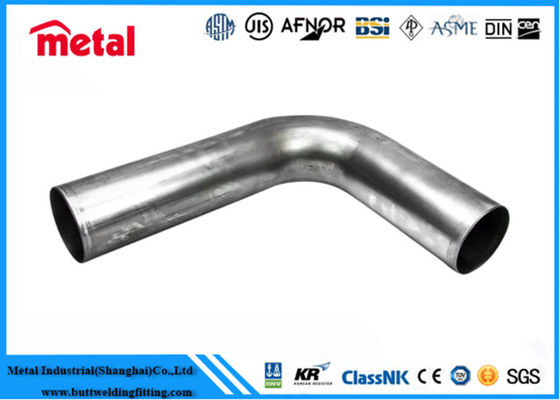

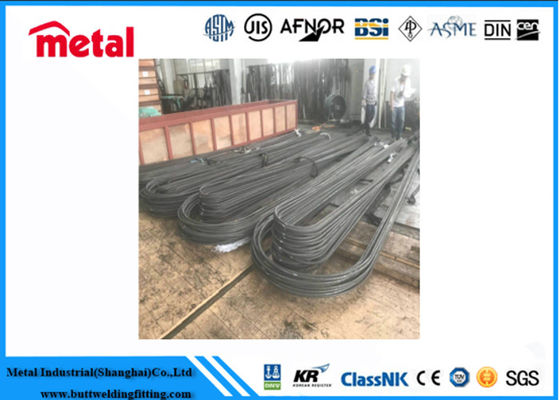

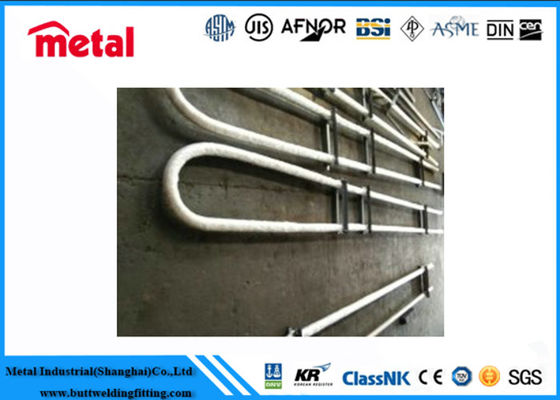

ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes

ASTM/ASME A/SA789 UNS 32205 U Tube Duplex Stainless Steel U-bent Tubes

   U Bend Tube are manufactured in our plant as per the customer requirements. Solution annealing after bend will

be process to lower the risidual stress, and followed by hydrostatic testing and dye penetrant testing if required.

Stainless Steel ubend :
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L, 316TI, 316H, 304L

Carbon Steel ubend
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel
ASTM A420 WPL3 / A420WPL6

Alloy Steel ubend
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel ubend
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750

Copper Nickel
C70600(90:10), C71500(70:30), C71640.

Packing and Shipping

Package:Standard export carton packing.

Delivery time:stock 7-10 workign days after confirming order,detail delivery date should be decided according to

production season and order quantity.

1) for R 100 mm +/- 3 mm
2) for R ≥ 100 mm +/- 5 mm

4). U bend Pipe Straightness tolerance max. 1,5 mm per 1 m
U Bend Tube ends: plain, vertically cut to the tube axis

U Bend Tube OD in mm can be bent upon agreement: 15.8 16.0 17.0 18.0 19.05 20.0 21.3 25.4 26.7 31.8 32.0 38.1mm

U bend Tube Initial Length
Maximum lengths of 27000mm can be supplied on request

Nickel Alloy
Standard

· ASTM / ASME SB 336

· UNS 10276 (HASTELLOY C 276 )

· UNS 2200 (NICKEL 200 )

· UNS 2201 (NICKEL 201 )

· UNS 4400 (MONEL 400 )

· UNS 8020 (ALLOY 20 / 20) CB 3

· UNS 8825 INCONEL (825 )

· UNS 6600 (INCONEL 600 )

· UNS 6601 (INCONEL 601 )

· UNS 6625 (INCONEL 625 )

· UNS 5500(MONEL K500)

· UNS 8800(INCONEL 800)

· UNS 8810(INCONEL 800H)
