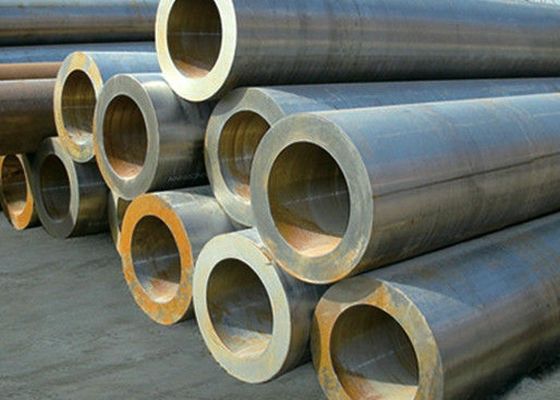

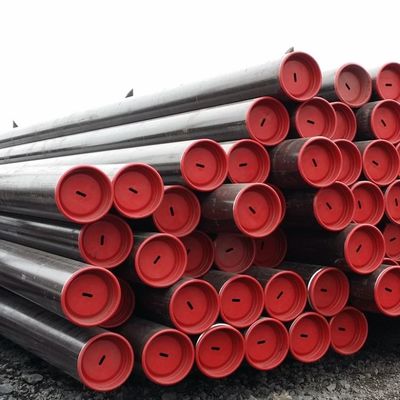

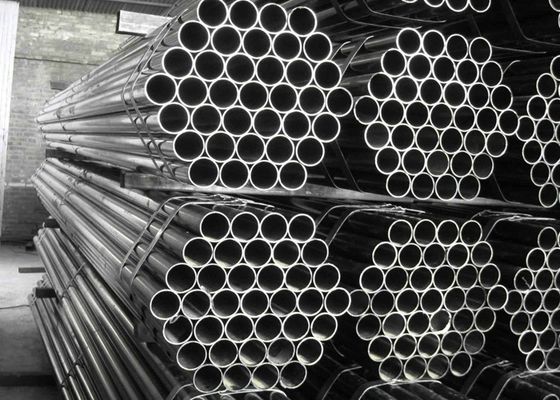

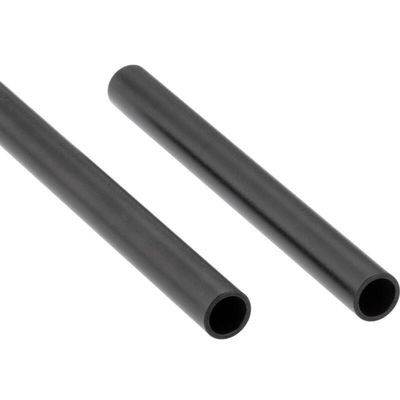

ASME Certified Low Temperature Carbon Steel Pipe by TOBO for Cryogenic & Cold Service

ASME Certified Low Temperature Carbon Steel Pipe by TOBO for Cryogenic & Cold Service


Overview

TOBO Low Temperature Steel Pipes are specially designed to retain outstanding toughness and structural stability in sub-zero and cryogenic operating conditions. Manufactured in strict accordance with ASME standards, these pipes are made from fine-grain steels processed to offer excellent impact resistance at low temperatures. They are engineered to avoid brittle fracture and guarantee safe, stable operation during the transfer of liquefied gases, refrigerants and other media in cold regions or low-temperature processes. This makes them a vital and reliable component for critical facilities in the LNG, petrochemical and energy storage sectors.

1. Product Description

TOBO Low Temperature Steel Pipes are carbon-manganese steel pipes optimized for sub-zero temperature applications. The key to their performance lies in precisely controlled chemical composition and production process—including normalization heat treatment—which creates a refined grain structure that maintains ductility and notch toughness well below freezing temperatures. Our product line includes seamless and welded pipes that meet specialized low-temperature specifications, ensuring dependable performance where standard carbon steel would become highly brittle.

2. Key Specifications

• Material Standards: Mainly conforming to ASTM A333/A333M (Seamless and Welded) and ASTM A671/A672 (Electric-Fusion-Welded).

• Common Grades: Grade 6 (-45°C / -50°F), Grade 3 (-100°F), Grade 7 (-75°C / -100°F), Grade 9 (-100°C / -150°F), Grade 10 (-196°C / -320°F for liquid nitrogen).

• Dimensional Standards: ASME B36.10M.

• Size Range: Full range from NPS 1/8" to 24" and larger sizes available.

• Key Test: All pipes are certified to meet strict Charpy V-Notch (CVN) impact energy requirements at the rated design temperature.

3. Applications

These pipes are indispensable for systems working in low-temperature environments:

• LNG Industry: Liquefaction plants, storage tank piping, loading & unloading lines, regasification terminals for methane at -162°C.

• Petrochemical & Gas Processing: Cryogenic separation units, ethylene plants, and handling of liquid propane, ammonia or CO₂.

• Refrigeration & Cold Storage: Industrial refrigeration systems, cold storage facilities and food processing plants.

• Offshore & Arctic Environments: Process and utility pipelines on platforms and in cold climate regions.

• Industrial Gas Production & Supply: Production, storage and distribution of liquid oxygen, nitrogen and argon.

4. Key Advantages

Certified Low-Temperature Toughness: Verified impact resistance at design temperature, preventing catastrophic brittle fracture.

Great Weldability: Can be welded with qualified procedures without reducing the low-temperature properties of the heat-affected zone.

Established Reliability: Long-term safe performance in critical cryogenic infrastructure worldwide.

Cost Efficiency: Delivers required safety and performance for low-temperature service at a lower cost than stainless steel or nickel alloys in most applications.

Full Compliance & Traceability: Supplied with complete certificates including impact test reports, confirming material suitability for the intended service.

5. Function

The main function of TOBO Low Temperature Steel Pipes is to provide a safe and durable pressure boundary for containing and conveying gases and liquids at temperatures below -20°C. They are designed to keep ductility and absorb energy under mechanical stress or pressure changes in cold conditions, thus maintaining system integrity, avoiding leaks or ruptures, and protecting personnel, the environment and valuable process media.
